・Highly variable flow rate control, from minimal to large
・Small with low flow rate, it can be mounted in narrow spaces
・Quick-drying fine particles
・Clog-resistant simple construction allows for simple thorough cleaning
・Spray is possible with syphon mode
Catalog：E15～E16
| Water Pressure Range [MPa] | 0 - 0.1 |
| Air Pressure Range [MPa] | 0.1 - 0.5 |
| Water Flow Rate [mL/min] | 15 - 254 (at 0.3 MPa) |
| Air Flow Rate [L/min (nor)] | 23 - 58 (at 0.3 MPa) |
| Spray Angle | 18° |
| Average Particle Size [μm] | Max.30 |
| Standard Materials | Stainless steel (SUS303) |
| Compatible Materials | Contact us for details about other materials. |

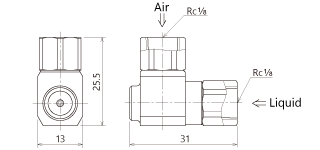

| KSMME |
|---|
|
|
