Specifications
| Pressure Range [MPa] | 0.05 - 1 |
| Water Flow Rate [L/min] at 0.3 MPa | 2 - 80 |
| Spray Angle at 0.3 MPa | 65° - 70° |
| Average Particle Size [μm] at 0.3 MPa | 160 - 700 |
Materials
| Standard Materials | Stainless steel (SUS303) |
| Compatible Materials | Varieties of stainless steel, Brass , Resin |
Dimensions

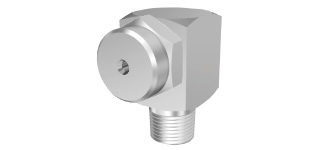

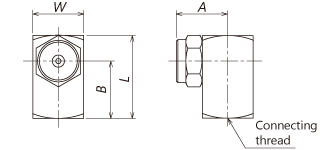

| KSFW |
|---|
|
|
| Model | Dimensions[mm] | Connecting thread | |||
|---|---|---|---|---|---|
| A | B | L | W | ||
| 1/8 KSFW | 16 | 18 | 26 | 16 | R 1/8 |
| 1/4 KSFW | 22 | 25 | 36 | 22 | R 1/4 |
| 3/8 KSFW | 26.5 | 32.5 | 45 | 25 | R 3/8 |
| 1/2 KSFW | 37 | 35 | 50 | 30 | R 1/2 |
| 3/4 KSFW | 48 | 40 | 60 | 40 | R 3/4 |
| 1 KSFW | 51 | 48 | 70 | 42 | R 1 |

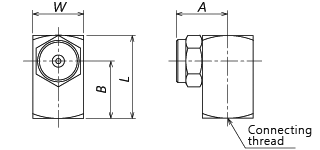

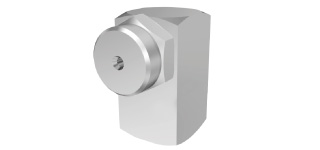

| KSFW‥‥H |
|---|
|
|
| Model | Dimensions[mm] | Connecting thread | |||
|---|---|---|---|---|---|
| A | B | L | W | ||
| 1/8 KSFW‥‥H | 16 | 18 | 26 | 16 | Rc 1/8 |
| 1/4 KSFW‥‥H | 22 | 25 | 36 | 22 | Rc 1/4 |
| 3/8 KSFW‥‥H | 26.5 | 32.5 | 45 | 25 | Rc 3/8 |
| 1/2 KSFW‥‥H | 37 | 35 | 50 | 30 | Rc 1/2 |
| 3/4 KSFW‥‥H | 48 | 40 | 60 | 40 | Rc 3/4 |
| 1 KSFW‥‥H | 51 | 48 | 70 | 42 | Rc 1 |
