Flat Air Nozzle KSTTH

80° wide-angle air spray nozzle

Download catalog here

Catalog:P9

Specifications

Pressure Range [MPa]0.1 - 0.7
Air Flow Rate [L/min (nor)] at 0.3 MPa95 - 320
Spray Width [mm]135 - 250  (at 100 mm)

Materials

Standard MaterialsStainless steel (SUS303)
Compatible MaterialsBrass

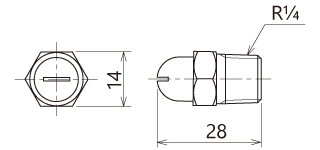

Dimensions

KSTTH
