Specifications
| Pressure Range [MPa] | 0.3 - 3 |
| Water Flow Rate [L/min] at 0.5 MPa | 0.65 - 7.8 |
| Spray Angle at 0.5 MPa | 60° |
| Mean Particle Size [μm] at 0.5 MPa | 130 - 300 |
Materials
| Standard Materials | Stainless steel (SUS303) |
| Compatible Materials | Brass |

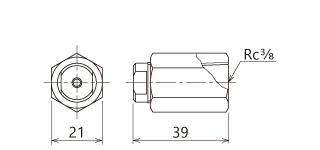

Dimensions
| KSC |
|---|
|
|
