Specifications
| Pressure Range [MPa] | 0.05 - 0.5 |
| Water Flow Rate [L/min] at 0.3 MPa | 4 - 2000 |
| Spray Angle at 0.3 MPa | 80° - 90° |
| Average Particle Size [μm] at 0.3 MPa | 250 - 2000 |
Materials
| Standard Materials | Stainless steel (SUS303) |
| Compatible Materials | Varieties of stainless steel, Brass, Plastics (PTFE, PVC, PP) |
Dimensions

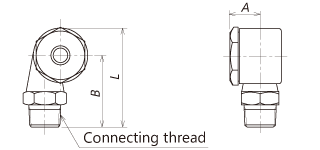

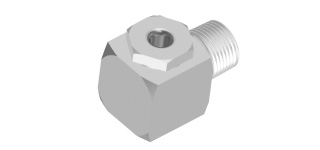

| KSW (R1/4-R1/2 Connecting thread) |
|---|
|
|

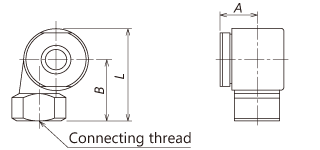

| Model | Dimensions[mm] | Connecting thread | ||
|---|---|---|---|---|
| A | B | L | ||
| 1/4 KSW | 13 | 24 | 32 | R 1/4 |
| 3/8 KSW | 16 | 27 | 38 | R 3/8 |
| 1/2 KSW | 19.5 | 32.5 | 45 | R 1/2 |

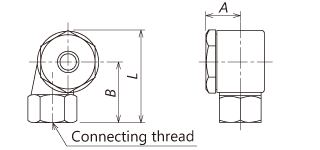

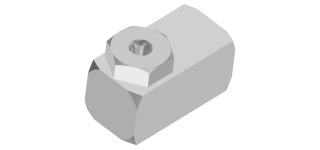

| KSW-H (Rc1/4-Rc1/2 Connecting thread) |
|---|
|
|
| Model | Dimensions[mm] | Connecting thread | ||
|---|---|---|---|---|
| A | B | L | ||
| 1/4 KSW････H | 13 | 24 | 32 | Rc 1/4 |
| 3/8 KSW････H | 16 | 27 | 38 | Rc 3/8 |
| 1/2 KSW････H | 19.5 | 32.5 | 45 | Rc 1/2 |

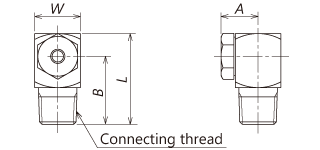

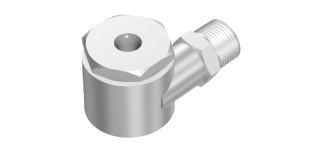

| KSW (R3/4-R1 Connecting thread) |
|---|
|
|
| Model | Dimensions[mm] | Connecting thread | ||
|---|---|---|---|---|
| A | B | L | ||
| 3/4 KSW | 26 | 61 | 84 | R 3/4 |
| 1 KSW | 36 | 72 | 100 | R 1 |

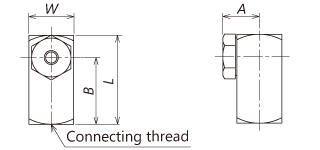

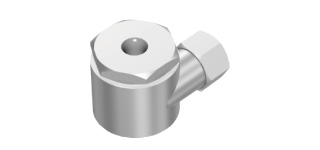

| KSW-H (Rc3/4-Rc1・1/2 Connecting thread) |
|---|
|
|
| Model | Dimensions[mm] | Connecting thread | ||
|---|---|---|---|---|
| A | B | L | ||
| 3/4 KSW････H | 27 | 45 | 68 | Rc 3/4 |
| 1 KSW････H | 36 | 56 | 83.5 | Rc 1 |
| 1･1/4 KSW････H | 60 | 75 | 115 | Rc 1･1/4 |
| 1･1/2 KSW････H | 75 | 85 | 135 | Rc 1･1/2 |

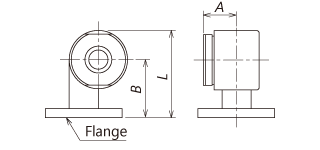

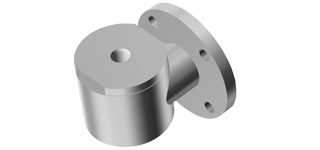

| KSW-F Flange Type |
|---|
|
|

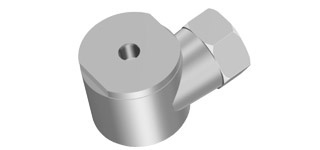

| Model | Dimensions[mm] | Flange Size | ||
|---|---|---|---|---|
| A | B | L | ||
| 2 KSW････F | 95 | 100 | 160 | 2 B |
| 2･1/2 KSW････F | 125 | 115 | 188 | 2･1/2 B |
| 3 KSW････H | 150 | 130 | 215 | 3 B |
| 4 KSW････F | 180 | 160 | 275 | 4 B |
| KSW-H (Rc2-Rc4 Connecting thread) |
|---|
|
|
| Model | Dimensions[mm] | Connecting thread | ||
|---|---|---|---|---|
| A | B | L | ||
| 2 KSW････H | 95 | 100 | 160 | Rc 2 |
| 2･1/2 KSW････H | 125 | 120 | 193 | Rc 2･1/2 |
| 3 KSW････H | 150 | 140 | 225 | Rc 3 |
| 4 KSW････H | 180 | 170 | 285 | Rc 4 |
