Hydraulic nozzle

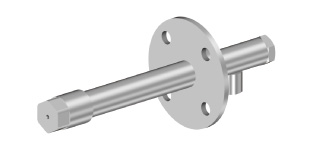

QC Nozzles KSWC Single Type

・Spray flow rate can be controlled at a range of 10:1 with return pressure control through a constant supply pressure
・Particle size is smaller when spray flow is less due to constant supply pressure

Download catalog here

Catalog：C7～C8

Specifications

Pressure Range [MPa]	1.5 - 3
Maximum Water Flow Rate [L/min] at 2 MPa	3 - 25.1
Minimum Water Flow Rate [L/min] at 2 MPa	0.3 - 2.5
Spray Angle	60° - 120°
Average Particle Size [μm]	90 - 190
