・Superior, extremely straight flow
・Made with wear-resistant materials
Catalog：D9～D10
| Pressure Range [MPa] | 1 - 10 |
| Orifice Diameter [mm] | 1.0 - 5.0 |
| Standard Materials | Nozzle tip : Stainless steel (SUS420J 2,SUS440C) Cap : Stainless steel (SUS303) Adapter : Stainless steel (SUS303) |
| TSJ |
|---|
|
|

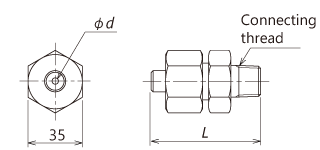

| Model | Dimensions L[mm] | Connecting thread |
|---|---|---|
| 1/2 TSJ | 81.5 (91.5) | R 1/2 |
| 3/4 TSJ | 81.5 (91.5) | R 3/4 |
There are 2 nozzle tip lengths: 30mm and 40mm.Measurements for 40mm tip are in parenthesis.
