Specifications
| Pressure Range [MPa] | 0.3 - 5 |
| Orifice Diameter [mm] | 0.3 - 2.0 |
Materials
| Standard Materials | Nozzle case: Stainless steel (SUS303) Tip: Stainless steel (SUS303), Cemented carbide, Ruby, Ceramics |
Dimensions

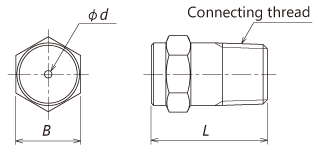

| KSJ-S |
|---|
|
|
| Model Number | Dimensions[mm] | Connecting thread | |
|---|---|---|---|
| B | L | ||
| 1/8 KSJ･･･S | 10 | 18 | R 1/8 |
| 1/4 KSJ･･･S | 14 | 25 | R 1/4 |

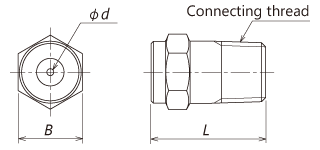

| KCJ-S, KCEJ-S, KRJ-S |
|---|
|
|
| Model | Dimensions[mm] | Connecting thread | |
|---|---|---|---|
| B | L | ||
| 1/8 KCJ･･･S | 10 | 18 | R 1/8 |
| 1/4 KCJ･･･S | 14 | 25 | R 1/4 |
