Specifications
| Pressure Range [MPa] | 0.1 - 0.7 |
| Air Flow Rate [L/min (nor)] at 0.3 MPa | 180 - 470 |
| Spray Width [mm] at 0.3 MPa | 21 - 23 (at 100 mm) |
Materials
| Standard Materials | Stainless steel (SUS303) ,Aluminum, Brass |

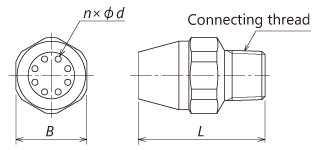

Dimensions
| KSVR |
|---|
|
| Model Number | Holes N |
Dimensions [mm] | Connecting thread | ||
|---|---|---|---|---|---|
| d | B | L | |||
| KSVR 1 | 6 | 1.0 | 14 | 25 | R 1/8 |
| KSVR 2 | 8 | 1.0 | 14 | 25 | R 1/8 |
| KSVR 3 | 6 | 1.0 | 14 | 25 | R 1/4 |
| KSVR 4 | 8 | 1.0 | 14 | 25 | R 1/4 |
| KSVR 5 | 6 | 1.4 | 17 | 32 | R 1/4 |
| KSVR 6 | 8 | 1.4 | 17 | 32 | R 1/4 |
